| Description | Roll width | Length | Thickness | M2/roll |
|---|---|---|---|---|
|

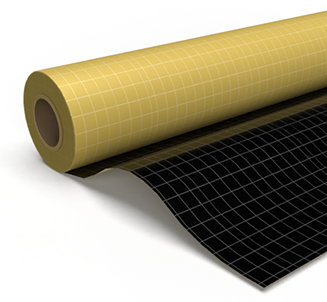

Rhinoplast Total Gas Barrier (TGB) |
2m |
50m |
0.56mm |
100m2 |
Total Gas Barrier is a high quality, virgin polymer, reinforced, multi laminate membrane with an aluminium core. Total Gas Barrier can be used as a hydrocarbon gas barrier in certain situations. The product is used as part of a full Radon/Carbon Dioxide/Methane (CS3/Amber 2) gas protection and will meet all current legislation as listed below. Total Gas Barrier prevents the transmission of harmful gases and due to the nature of it’s construction, the membrane overcomes problems associated with membranes manufactured from post-consumer recycled waste. Total Gas Barrier also acts as a damp proof membrane and can Total Gas Barrier also acts as a damp proof membrane and can be welded.
Downloads
Pre-formed Corners, Top Hats & Ancillaries
Gas Barrier External 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall external corners, manufactured from gas resistant DPC, standard cloaks available from stock.
Gas Barrier Internal 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall internal corners, manufactured from gas resistant DPC, standard cloaks available from stock.
Preformed Perimeter T/Frame Linear trays - 2m
Preformed from rigid material to allow perimeter protection for early installation to then join gas barrier membrane at a later stage, designed to cap over foundation block below sole plate to allow ventilated airspace. Manufactured from rigid HDPE.
Gas Barrier Step Door Cloak Pair
(LH Illustrated) Designed to ease the installation and preformed to cap off cavity wall at reveal openings, manufactured from gas resistant DPC, standard cloaks available from stock.
Top Hat Vent Collar
Top Hats are used around service pipe penetrations to provide an effective gas tight seal. The base of the pre-formed unit should be sealed using Rhinoplast LT Jointstrip and overtaped at the edges with Girth Tape. A stainless steel Jubilee clip is available for the collar. Airtight seals should be formed around all service entry points.
Available in rigid and flexible types.
Telescopic Vent Top Hat
Designed to ease installation around complex underfloor ventilators in masonry construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC, standard cloaks available from stock.
Bespoke options available and designed from our in-house design team.
Telescopic Vent T/Frame Top Hat
Designed to ease installation around complex underfloor ventilators in timber frame construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC
Bespoke options available and designed from our in-house design team.
