Hydrocarbons are colourless gases formed as a by-product of decomposing organic matter. It is crucial that when gas protection is required, the site conditions, design and application are all taken into consideration to provide an impermeable membrane capable of surviving installation and subsequent traffic, to protect the most valuable asset ‘‘ the building’’ against harmful gases that can cause future problems.
Rhinoplast Hydrocarbon Geomembrane is a high quality, high density polyethylene (HDPE) produced from specially formulated, proprietary virgin polyethylene resin designed specifically for flexible geomembrane applications.
Rhinoplast Hydrocarbon Geomembrane has outstanding chemical resistance, mechanical properties, environmental stress crack resistance, dimensional stability and thermal ageing characteristics. The membrane also has excellent resistance to UV radiation and is suitable for exposed conditions.
| Description | Roll width | Length | Thickness |
|---|---|---|---|
|
Rhinoplast Hydrocarbon Barrier |
2.5m |
35m |
1mm |
Downloads
Pre-formed Corners, Top Hats & Ancillaries

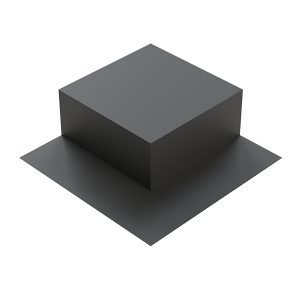

Gas Barrier External 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall external corners, manufactured from gas resistant DPC, standard cloaks available from stock.

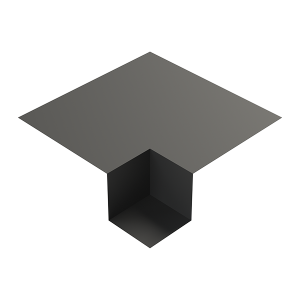

Gas Barrier Internal 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall internal corners, manufactured from gas resistant DPC, standard cloaks available from stock.

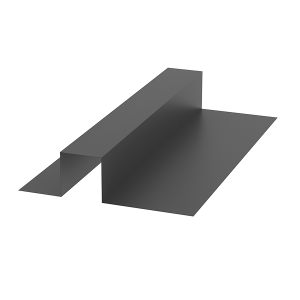

Preformed Perimeter T/Frame Linear trays - 2m
Preformed from rigid material to allow perimeter protection for early installation to then join gas barrier membrane at a later stage, designed to cap over foundation block below sole plate to allow ventilated airspace. Manufactured from rigid HDPE.

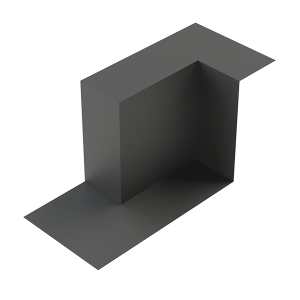

Gas Barrier Step Door Cloak Pair
(LH Illustrated) Designed to ease the installation and preformed to cap off cavity wall at reveal openings, manufactured from gas resistant DPC, standard cloaks available from stock.

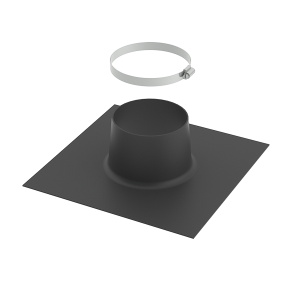

Top Hat Vent Collar
Top Hats are used around service pipe penetrations to provide an effective gas tight seal. The base of the pre-formed unit should be sealed using Rhinoplast LT Jointstrip and overtaped at the edges with Girth Tape. A stainless steel Jubilee clip is available for the collar. Airtight seals should be formed around all service entry points.
Available in rigid and flexible types.

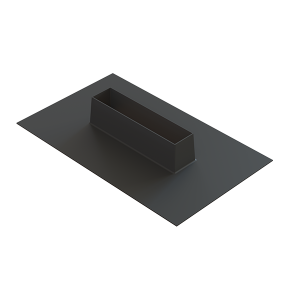

Telescopic Vent Top Hat
Designed to ease installation around complex underfloor ventilators in masonry construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC, standard cloaks available from stock.
Bespoke options available and designed from our in-house design team.

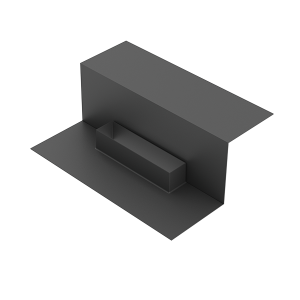

Telescopic Vent T/Frame Top Hat
Designed to ease installation around complex underfloor ventilators in timber frame construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC
Bespoke options available and designed from our in-house design team.
