| Description | Roll width | Length | Thickness | M2/roll |
|---|---|---|---|---|
|
Amber 2000 Gas Barrier |
4m |
12.5m |
500mu |
50m2 |

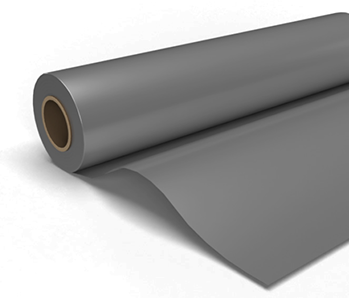

Rhinoplast Amber 2000 Gas Barrier is a low permeability, highly robust monolithic thermoplastic LDPE membrane for use as a Radon, C02 and low level Methane barrier. The barrier provides a safe solution for use in the construction of buildings and dwellings when installed according to the relevant code of practice. The product is coloured grey and is centre folded to minimise creasing under screeds and for ease of handling on site. The product has excellent strength and puncture resistance. Primarily designed to meet the requirements of NHBC characteristic Amber 1
Downloads
Pre-formed Corners, Top Hats & Ancillaries
Gas Barrier External 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall external corners, manufactured from gas resistant DPC, standard cloaks available from stock.
Gas Barrier Internal 90° Corner
Designed to ease installation by reducing the amount of detailing and taping required, preformed to simply cap off cavity wall internal corners, manufactured from gas resistant DPC, standard cloaks available from stock.
Preformed Perimeter T/Frame Linear trays - 2m
Preformed from rigid material to allow perimeter protection for early installation to then join gas barrier membrane at a later stage, designed to cap over foundation block below sole plate to allow ventilated airspace. Manufactured from rigid HDPE.
Gas Barrier Step Door Cloak Pair
(LH Illustrated) Designed to ease the installation and preformed to cap off cavity wall at reveal openings, manufactured from gas resistant DPC, standard cloaks available from stock.
Top Hat Vent Collar
Top Hats are used around service pipe penetrations to provide an effective gas tight seal. The base of the pre-formed unit should be sealed using Rhinoplast LT Jointstrip and overtaped at the edges with Girth Tape. A stainless steel Jubilee clip is available for the collar. Airtight seals should be formed around all service entry points.
Available in rigid and flexible types.
Telescopic Vent Top Hat
Designed to ease installation around complex underfloor ventilators in masonry construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC, standard cloaks available from stock.
Bespoke options available and designed from our in-house design team.
Telescopic Vent T/Frame Top Hat
Designed to ease installation around complex underfloor ventilators in timber frame construction by reducing the amount of detailing and taping required, preformed to simply cap over ventilators, manufactured from gas resistant DPC
Bespoke options available and designed from our in-house design team.
