CM3 Slimline Mesh Membrane

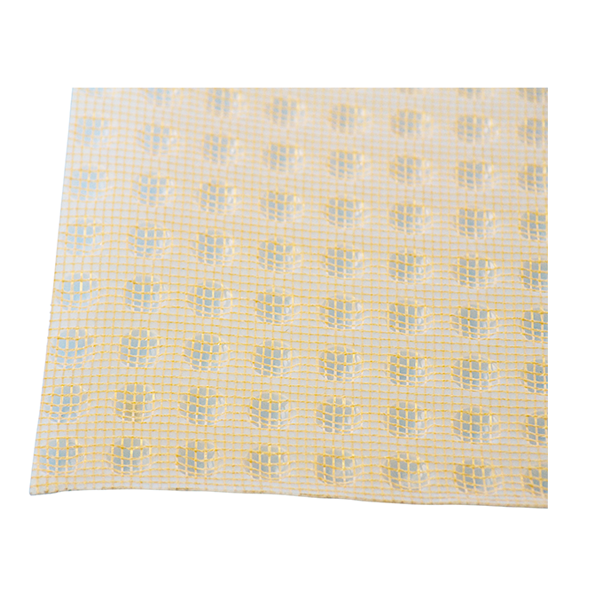

CM3 Mesh Membrane is a water resistant membrane with studs forming a regular pattern on one face of the roll, and polypropylene mesh on the other side. It is tough but pliable and can be easily cut with a sharp blade to the correct size. Suitable for use above and below ground and can be rendered, plastered or dot and dab boarded on top.

Mesh membrane ideal for replastering after knocking off 1.2 m of plaster for completion of a damp-proof course. CM3 Mesh Membrane is a studded membrane to prevent the penetration of water through walls, with a polypropylene mesh on the reverse to allow for application of an array of finishes.

Description Size Sheet Thickness Stud Height
Cm3 Slimline Mesh Membrane
1m x 20m
0.7mm
3mm
  • High performance bonded mesh
  • Part of a Type C Cavity Drain Membrane System in line with BS8102:2009
  • Waterproof, salt inhibiting, root and contaminant resistant
  • Creates a dry, habitable living space in area previously suffering from damp/wet conditions
  • Easily cut down using a sharp blade
  • Easy to fold around windows and doors
  • Quick to install – minimal preparation needed to wall surfaces
  • No drying out process – redecoration can occur immediately
  • Little or no damage to the existing structure

Walls, Above and below ground level, Type C Waterproofing applications and Damp-proofing applications.

For further information please download our data sheets or contact the Our Technical Department

Product DescriptionCM3 Mesh Membrane 1 x 20 m

Packaging and Size1 m x 20 m, 11 Kg
Coverage20 m²
StorageStore in an upright position, under cover and away from high temperatures and open flames
Life ExpectancyThe lifetime of the structure, when stored and installed in line with the datasheet recommendations.
