Starter Tie

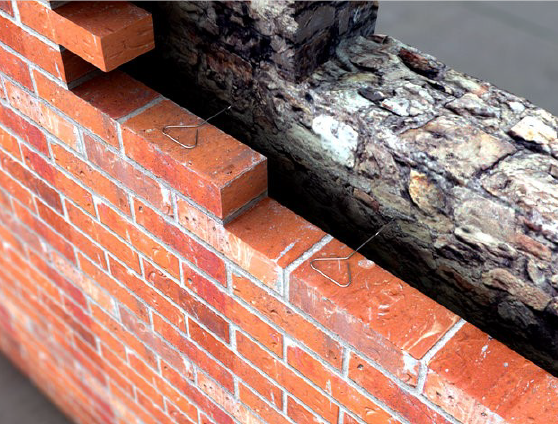

This tie is quick and simple to install. It is suitable for use in brickwork and blockwork of up to 3 storeys or 8 metres in height and meets the technical requirements of the NHBC. Supplied complete with an 8mm nylon wall plug, the Starter Tie is fixed into the existing wall at an angle of 30° to the horizontal and bent into the bed joints of the new brickwork. Ties should be fixed at 225mm vertical centres and be central to each leaf of the new wall.


Categories: ,

Starter Ties are used where new walls are being built directly from existing brickwork. Sizes 150mm and above have a drip feature for use where there is a cavity and a new wall needs to be built.

  • Grade 1.4301 austenitic stainless steel to EN 10088-2.
  • Plug and screw into existing masonry then build into new wall.
Description Size Material
Starter Tie
Stainless Steel
