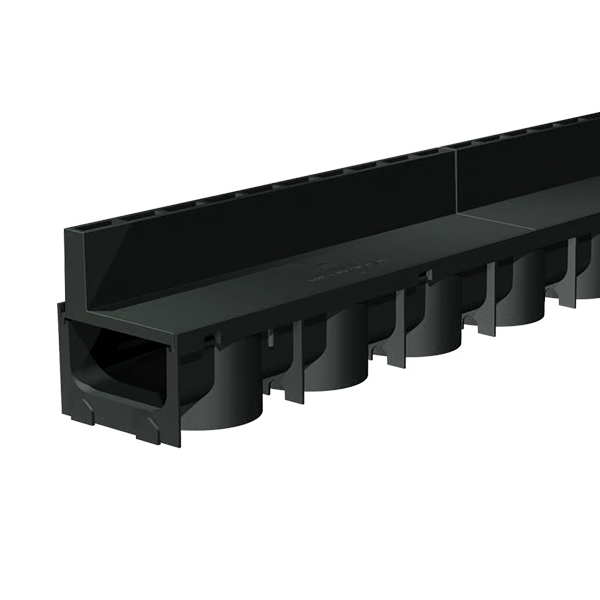

Slot Drain Channel

Class:

Rated B125 – Installed with paving

Rated C250 – Installed fully encased in concrete up to top of upstand

  • Grating fitted with 2 bolts for security
  • 3 Bottom Outlet points per length
  • Slot openings are 12mm wide
  • EN1433 CE marked

Features

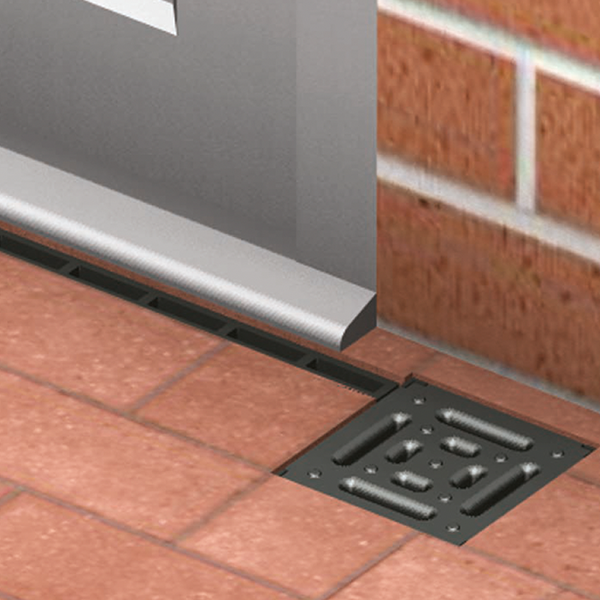

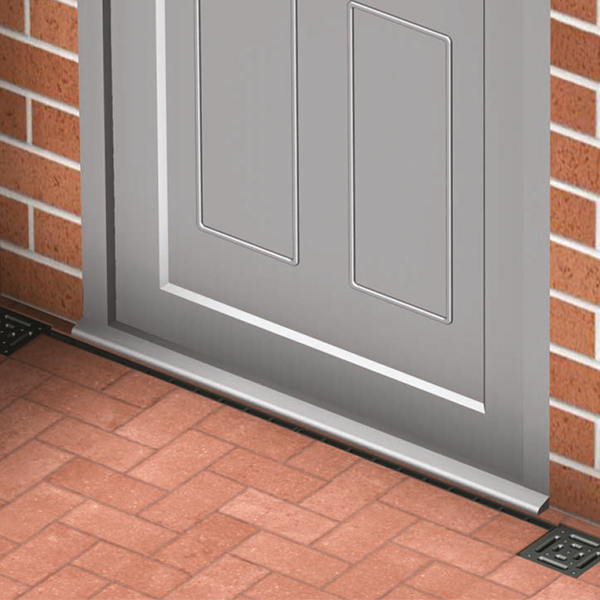

    • Ideal for domestic threshold and lightweight vehicle areas only
    • Can handle a flow rate of 4.5 l/s
    • 100% recycled polypropylene, so light & easy to install
    • Base tested to BS EN 1433
    • Positive mechanical joint between each channel length
    • Can be installed with block paving or concrete surround
      Category:
      Channel Measurements Unit
      Channel Width
      130mm
      Channel Length
      1000mm
      Channel Depth
      160mm
      Channel Depth (main body side)
      105mm
      Slot upstand height
      55mm
