4ALL Domestic Channel

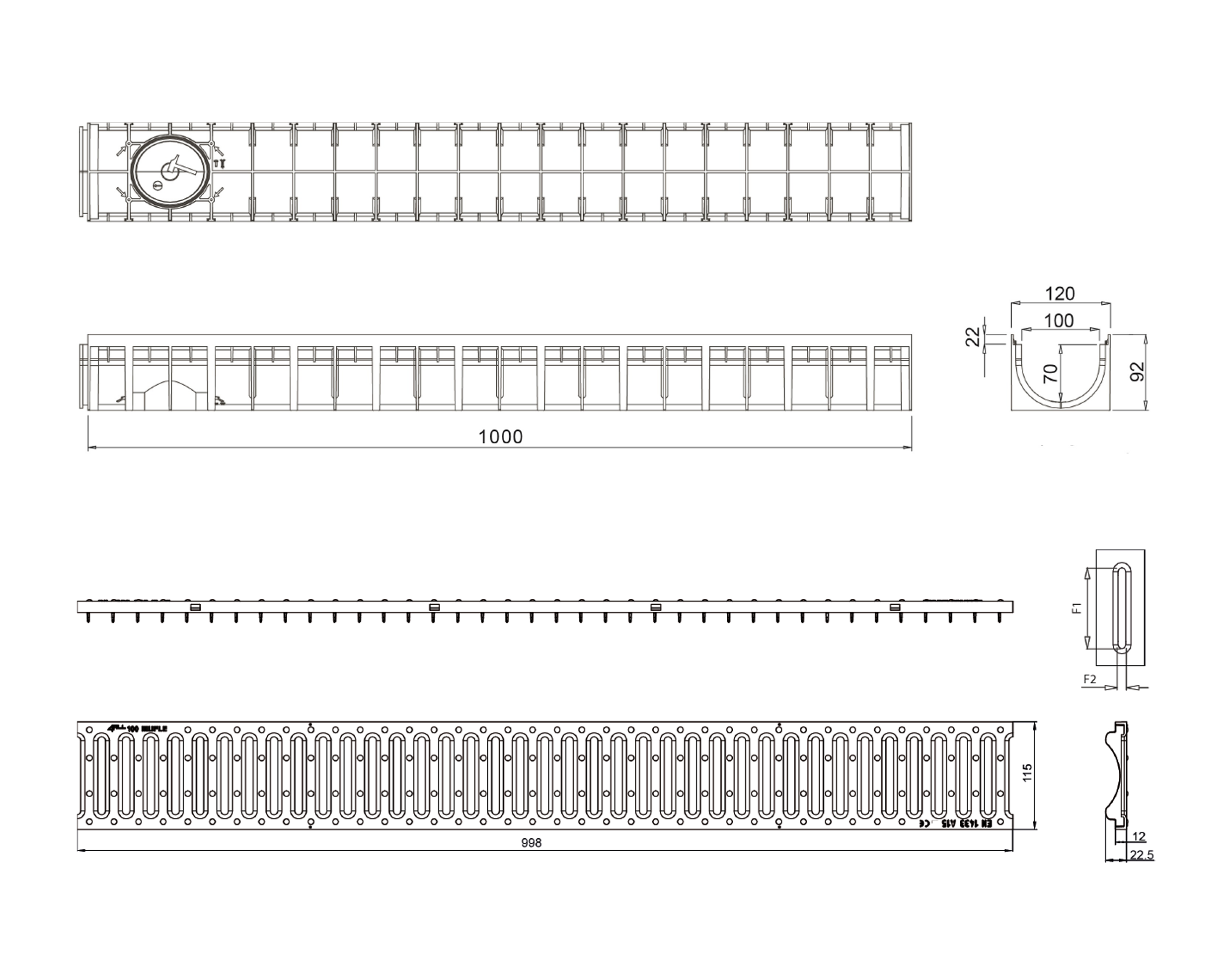

Size: Length (mm) :1000 External width: 120 External Height: 90 Internal Width: 95 Internal Height: 80

Class: A15

Available in Polypropylene , Galv & Stainless. Also available with B125 Grating.

Features

  • Click the grating in and out, no screws required
  • Designed in accordance with EN 1433
  • Easy to assemble
  • Quick waterflow drainage
  • External ribs provide improved anchoring between Concrete and HDPE and provides better strength and rigidity
  • High mechanical and chemical resistance
  • Lightweight
  • Easy to carry
    Category:
    Channel Measurements Unit
    Channel Width
    120mm
    Channel Length
    1000mm
    Overall Height
    90mm

    The 4All Domestic Drainage Channel boasts a robust construction, utilizing durable lightweight materials that withstand the test of time and provide long-lasting performance. With its sleek and discreet design, it seamlessly blends into any outdoor environment, complementing the aesthetics of your home.

    Featuring a user-friendly installation process, the 4All Domestic Drainage Channel can be easily integrated into driveways, patios, gardens, and other areas prone to water accumulation. Its modular system allows for customization, enabling you to adapt the channel length to suit your specific needs.

    Maintaining the 4All Domestic Drainage Channel is hassle-free, as it can be effortlessly cleaned and maintained with simple tools. This low-maintenance feature saves you time and effort while ensuring its reliable performance year-round.

    • For the installation of the 4ALL channel with A15 class grating, the trench should be 192 mm high ( 92 mm for the channel height + 100mm for the concrete laying bed) and 320mm wide (120 mm for the channel width + 200mm for the side flankings).
      • Available in black or grey P/P and Galv
      • A15 domestic rating
      • Click the grating in and out, no screws required
      • Designed in accordance with EN 1433
      • Easy to assemble
      • Quick waterflow drainage
      • High mechanical and chemical resistance
      • Lightweight
      • Easy to carry

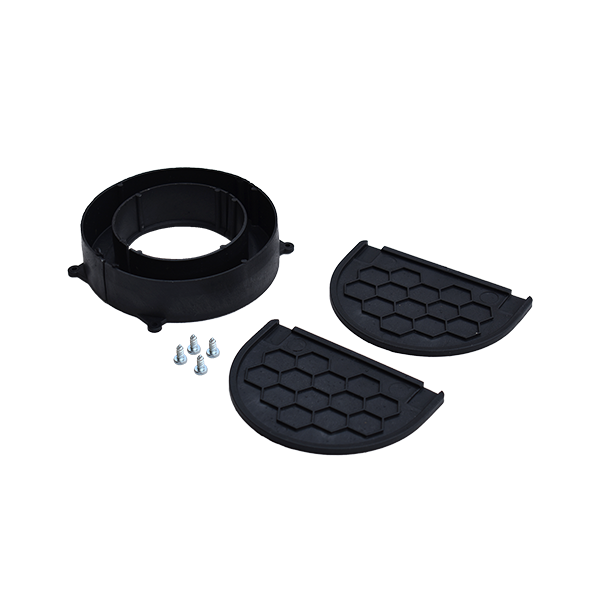

    4ALL  Accessory Kit

    Pack containing 2 4ALL endcaps & one 4all outlet.
