Round Soffit Ventilator

• Easily fitting to existing and fitted soffit boards

• Each vent provides 2,500mm² airflow

• Discreet low-profile design

• Integral flyscreen at 4mm

• Meets requirements of BS5250:2021 Management of moisture in buildings

• Lightweight and resistant to corrosion and rotting

• 70mm diameter

Description

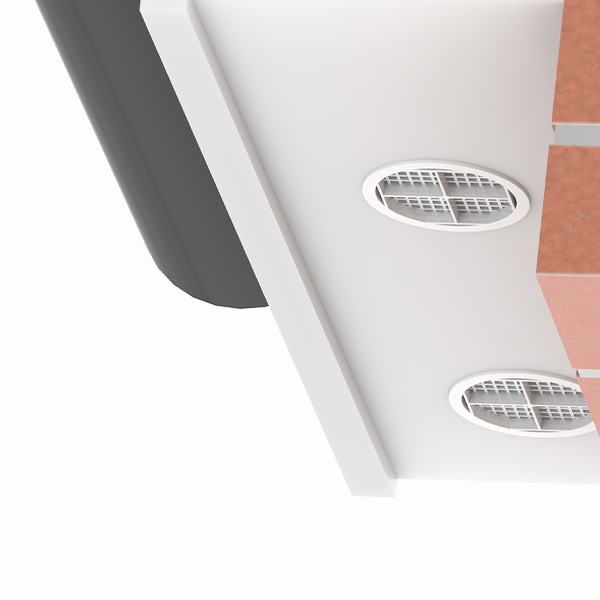

Individual 70mm diameter round soffit ventilators are designed for use with traditional soffit boards to provide primary sourced roof ventilation. The plastic vents push fit into predrilled holes regularly spaced in the soffit board. Ventilation air flow feeds through evenly spaced holes to a regulation 4mm standard that are large enough not to be blocked with debris but small enough to prevent ingress of large nest building insects/vermin.

• For new and existing soffit boards to form passive air entry to roof voids

• To form clear and regulated free airspace

• To allow eaves to eaves and eaves to ridge cross flow ventilation in pitched roofs

• To allow 10,000mm² airflow entry when fitted at 250mm regular centres

• To allow 25,000mm² airflow entry when fitted at staggered 100mm centres

• Easily fitting to existing and fitted soffit boards

• Each vent provides 2,500mm² airflow

• Discreet low-profile design

• Integral flyscreen at 4mm

• Meets requirements of BS5250:2021 Management of moisture in buildings

• Lightweight and resistant to corrosion and rotting

• 70mm diameter

• Ridge and eaves units available

• Manufactured in various colours in Polypropylene

• Available in five colours; white, brown, black, caramel and anthracite
