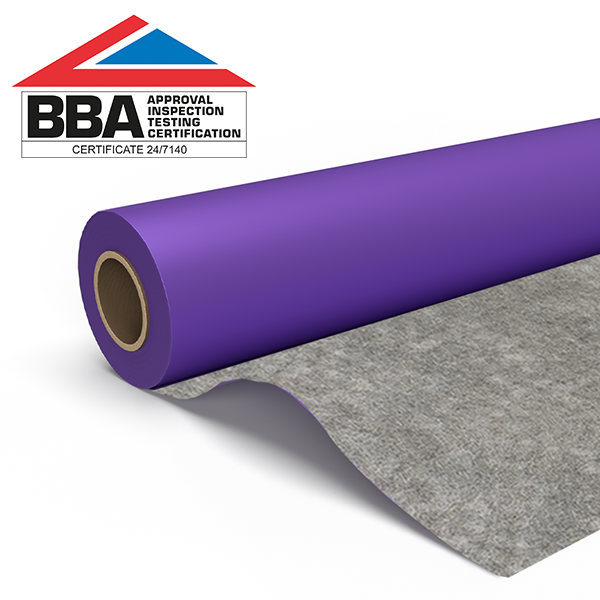

Rhinoplast Evolution P-A

A pre-applied fully bonded waterproofing gas barrier membrane combined with a heavy-duty virgin polypropylene geotextile providing a fully concrete bonded system in basement and below ground structures.

Category:

• Designed to Integrate with the subsequently placed fresh concrete to give strong mechanical bond effect without adhesive, primers, heat or open flames

• Applied prior to fixing steel reinforcement

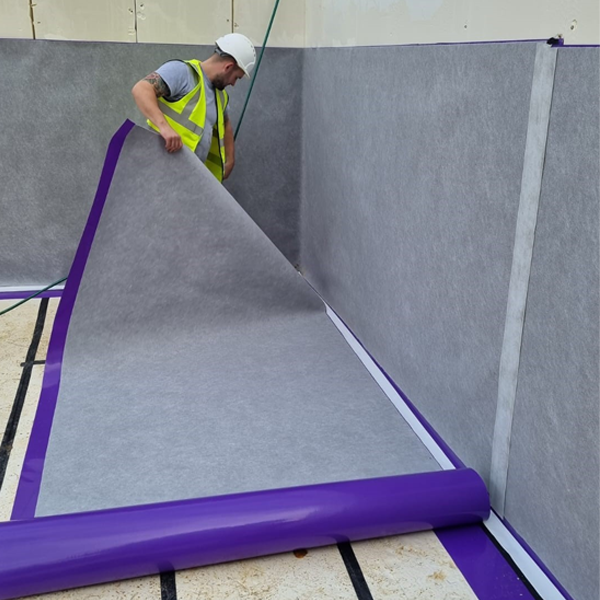

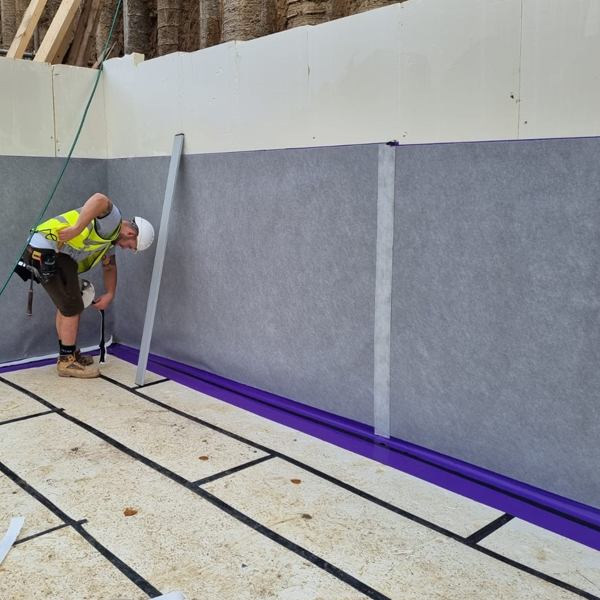

• Applied in a vertical and/or horizontal to blindside or under slab applications

• Used to create an integral seal between the concrete and the waterproofing membrane

• Specifically developed for use on construction sites contaminated by Volatile Organic Compounds, Hydrocarbons, and other ground gasses such as Methane, Radon and CO²

• Ensures a fully bonded waterproofing barrier

• Membrane bond is continuous

• Supplied single-wound to achieve a lay flat surface

• Exceptionally high resistance to ground gas and VOC’s

• Used for gas/waterproofing and tanking of underground structures

• Impedes lateral migration of water between the membrane and concrete structure

• Waterproofing barrier Type A

• Easily folded on site

• CE marked for water proofing to harmonised standard EN 13967:2012+A1:2017

• Conforms to BS8102:2012

• Conforms with BS8485:2015+A1:2019 (Table 7)

• Incorporates guidance outlined in CIRIA C748

• Conforms to the specification required of NHBC Amber 1 & 2 applications.

• Suitable for all Characteristic Gas Situations (CS) ground gas regimes

• Excellent welding characteristics for VOC applications

• Two layers of Ethylene Vinyl Alcohol Co-Polymer (EVOH)

• Advanced 14-layer membrane barrier

• Preformed accessories available

• Taped system for easy cold applied installation

•Material – PE/EVOH membrane & Non-woven polypropylene geotextile fleece

• Colour – Purple/Grey

• Thickness – 1.9mm

• Roll sizes – 1.65m x 30mtr

Description Roll width Length Thickness M2/roll
Pre-Applied fully bonded gas barrier
1.65m
30m
1.9mm
49.5

Downloads

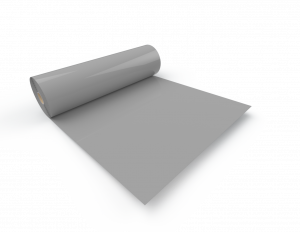

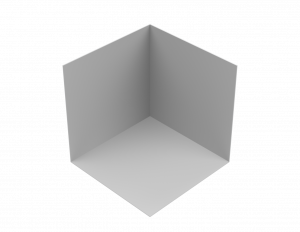

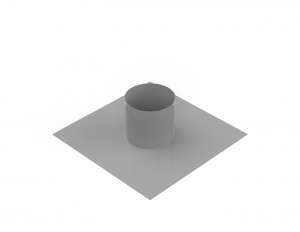

Pre-formed Corners, Top Hats & Ancillaries

Gas Barrier System Solutions

The Rhinoplast gas barrier system solutions service has been established to provide a complete design service to overcome many problems associated with construction on land associated with a range of hazardous gasses. Principal can offer a full technical support to recommend and design products that can simplify, improve, and accelerate installations to meet site specific gas regimes.

We offer a full plot and site-specific schedule service to ensure full site compliance and all components can be either standard issue or uniquely CAD designed with technical supported on-site visits.
