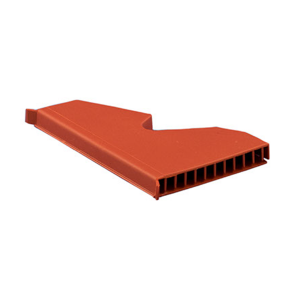

HifloWeep Cavity Wall Weep

The HifloWeep has been designed to form an unobstructed drainage path with the ultimate level of concealment and maximum drainage flow with self-cleaning capability.

Ultimate concealed Wall Weep offering maximised drainage by integrating an anti-mortar blockage design.

• To form unobstructed cavity wall drainage path in masonry perpend joints

• Suitable for cavity drainage below DPC at ground level

• Ideal for draining abutment & perimeter cavity trays to give concealed weep outlets for above lintels, stop socks, brick supports & through wall ventilators

• To satisfy NHBC standards

• Ultimate level of concealment with small low visibility outlet

• 4mm outlet to meet BS5250 to reduce the entry risk of large nest building insects

• Maximised drainage flow with a gradient fall of 1:29 (2o fall angle)

• UK patent pending

• Anti-mortar blockage design

• Encourages free drainage and self cleaning

• Wind baffle formed by gradient design

• Inlet design reduces the risk of blockage

• Straight unobstructed drainage path

• Full height perpend inlet to overcome mortar build up within the cavity

• Mortar anchor ribs to reduce slumping when filling perpend joints

• Drip bars and gradient to minimise water tracking from outlet

• Clear plastic as standard with other colours available

• Boxed in 50’s

• Overall size 102mm x 65mm x 10mm

• Injection moulded grade Polypropylene

• Clear & Colours available

• Packaging 260mm x 110mm x 80mm

Description Colours Height Width Length Pack Qty
Clear, Buff, Terracotta
