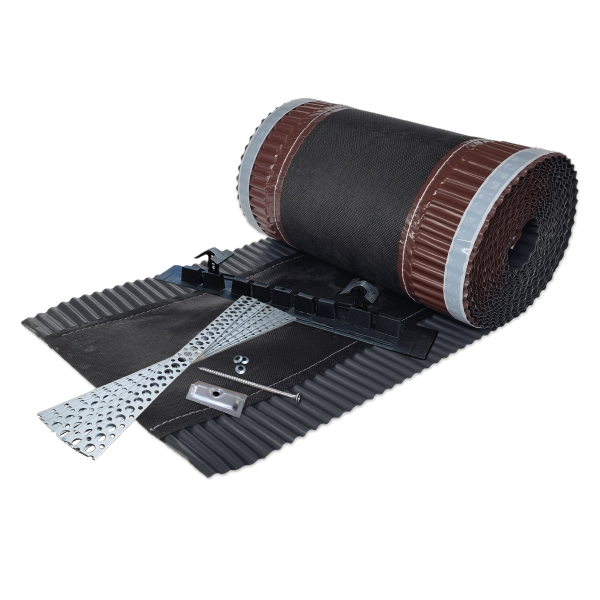

The universal dry fix ridge kit is a simple system to secure ridge tiles on a dual pitched roof while removing the need for sand cement mortar by using clamps, screws, and unions to give a safe and improved speed of installation with protection from wind up-lift and rain penetration. The kit complies with BS8612 and provides 5,000mm²/m ventilation to the roof void which is the equivalent to a continuous 5mm gap, to meet requirements of BS5250. The system is compatible with most makes of round and angled ridge tiles along with low & high profile tiles and slates. Each universal dry fix ridge kit contains all mechanical fixings required for a ridge run approximately 6 metres in length.
• 6 metre Universal dry fix ridge ventilation kit
• To ventilate the roof space at ridge level
• Mechanically dry fix roof ridge tiles
• Compatible with low & high profile tiles and slates
• New build and refurbishment projects
• Most pitched roof types from 15-55°
- Unique jointing system for ultimate versatility
- Can be used with both half round and angled ridges
- Dry fix is the fastest way to install ridge tiles
- No wet trades needed
- Smooth line providing a discreet appearance
- Provides 5000mm2/m Ridge Ventilation (5mm continuous)
• Ridge tile joint union manufactured from black polypropylene
• Screws & clamping plates made of stainless steel
• Ridge batten fixing bracket made from pre galvanised steel
• Vent roll is PP mesh fabric with aluminium strip and 10mm butyl adhesive strips
