Universal Dry Fix Ridge Kit

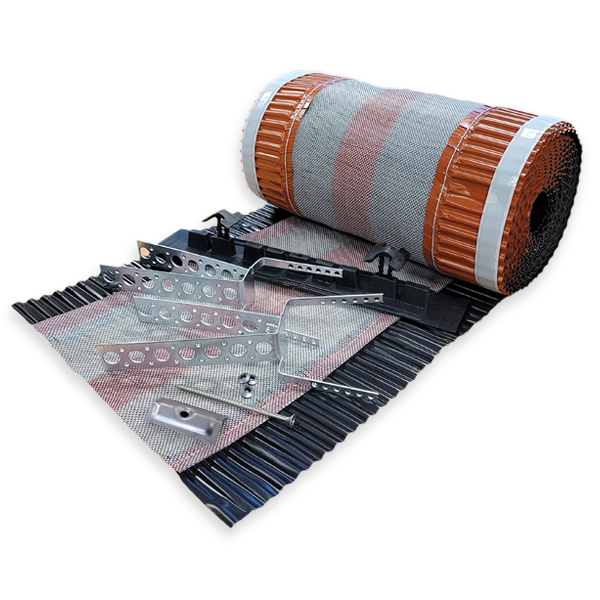

Ridge Kit Contents
• 1 x Vent Roll (300mm x 6m) with black edge trim to upper surface
• 13 x Ridge to ridge joint unions and 26x clips
• 13 x Stainless steel 100mm screws and clamping plates
• 10 x Ridge batten fixing brackets



The universal dry fix ridge kit is a simple system to secure ridge tiles on a dual pitched roof while removing the need for sand cement mortar by using clamps, screws, and unions to give a safe and improved speed of installation with protection from wind up-lift and rain penetration. The kit complies with BS8612 and provides 5,000mm²/m ventilation to the roof void which is the equivalent to a continuous 5mm gap, to meet requirements of BS5250. The system is compatible with most makes of round and angled ridge tiles along with low & high profile tiles and slates. Each universal dry fix ridge kit contains all mechanical fixings required for a ridge run approximately 6 metres in length.

• 6 metre Universal dry fix ridge ventilation kit

• To ventilate the roof space at ridge level

• Mechanically dry fix roof ridge tiles

• Compatible with low & high profile tiles and slates

• New build and refurbishment projects

• Most pitched roof types from 15-55°

• Complies with BS8612 Dryfixed system specification

• 6m kit that is easy to use & handle

• 5000mm²/m ridge ventilation to meet requirements of BS 5250

• Complies with mechanical fixing requirements of BS 5534

• Universal ridge tile joint unions to provide a mortar free finish

• Ridge batten wrap style fixing brackets

• Stainless-steel fixings screws and clamping plates

• Highly durable – UV stable and water resistant

• Suitable for new build and refurbishment projects

• Additional dry fix hip support trays and tiles clips available as required

• Ridge tile joint union manufactured from black polypropylene

• Screws & clamping plates made of stainless steel

• Ridge batten fixing bracket made from pre galvanised steel

• Vent roll is PP mesh fabric with aluminium strip and 10mm butyl adhesive strips
