Slate Ventilator

Universal hooded slate ventilator for new and refurbishments.

Slate space vent is a roof space ventilator for use with slates. The base as supplied is a direct replacement for a 600mm x 300mm slate. When the 25mm side bands are trimmed off and the inner set of fixing points is used, the unit is then a direct replacement for a 500mm x 250mm slate. The slate ventilator unit has a free vent area of 10,000mm². The slate vent can be converted to a terminal by adding appropriate adaptor.

Description Ventilation Length Width Diameter Pack Qty
600 x 300 Universal hooded slate ventilator SRV10U
10,000mm2
600mm
300mm
-
10's

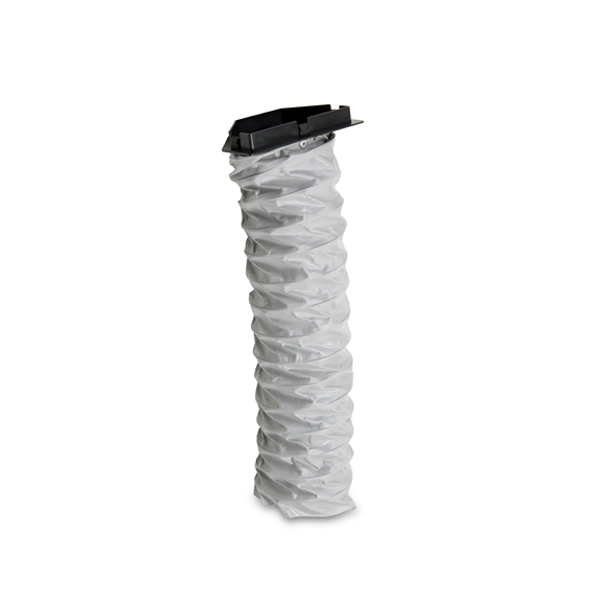

Soil pipe adaptor kit to suit SRV10U
9500mm2
440mm
-
110mm
10's

• For high or low level roof space ventilation

• Slate replacement ventilator

• For new build and/or refurbishment projects

• To reduce risk of condensation

• Suitable for soil ventilation and mechanical extraction

• Direct replacement for 600mm x 300mm slate

• Trim for replacement for 500mm x 250mm slate

• To allow 10,000mm² free vent area

• Suitable for both 600mm x 300mm & 500mm x 250mm slates

• Optional adaptor kit available to 110mm diameter pipe

• Meets requirements of BS5250:2021 Management of moisture in buildings

• Provides compliance with BS5534

• Complies with Building regulation approved documents F1 & C2

• Assists in meeting requirements of the domestic ventilation compliance guide 2010

• Prevents ingress of water, birds, vermin and large insects

• Lightweight and resistant to corrosion and rotting

• Acid rain resistant and UV stabilised

• Manufactured in Black Polypropylene.
