In-Line Tile Ventilation

Discreet low profile solutions for roof space & soil/mechanical terminal ventilation

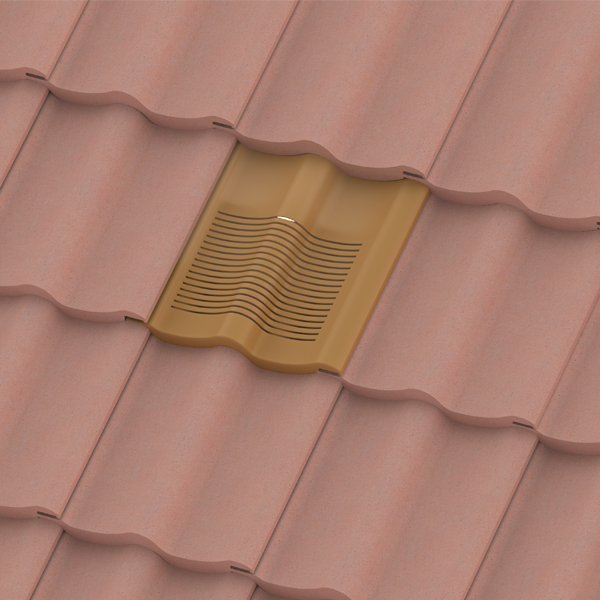

The in-line ventilation range suits the most common concrete profiled roof tile types such as double roman, castellated, mini castellated, pantile, Renown, plain, Modern and 49’s. Offering a high airflow performance ventilation rate whilst retaining the aesthetics of the roof design and is available in 5 colours. It is designed to provide ventilation of the roof space, either at high or low levels for roof pitches above 17.5° and may be used to supplement or replace other ventilation such as dry ridge, abutment, or eaves systems. The In-Line tile ventilators have a free vent area of up to 15,000mm². The vents can be converted to a terminal by adding appropriate adaptor

Description Ventilation Length Width Pack Qty

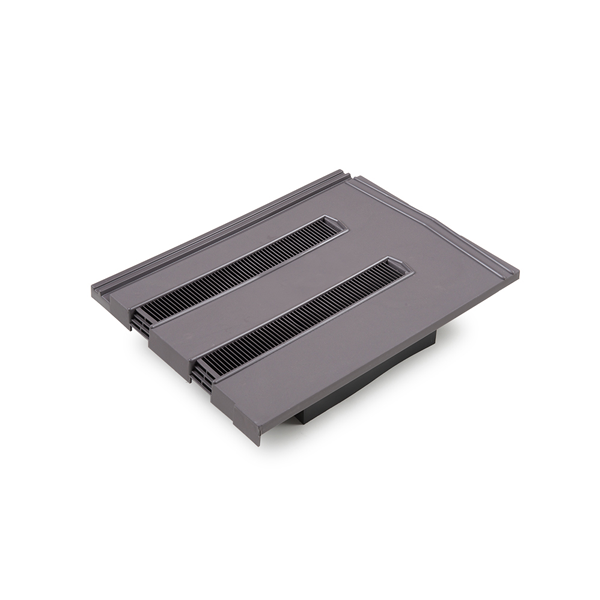

Modern in-line tile vent TV15/1
15,000mm²
420mm
330mm
5’s

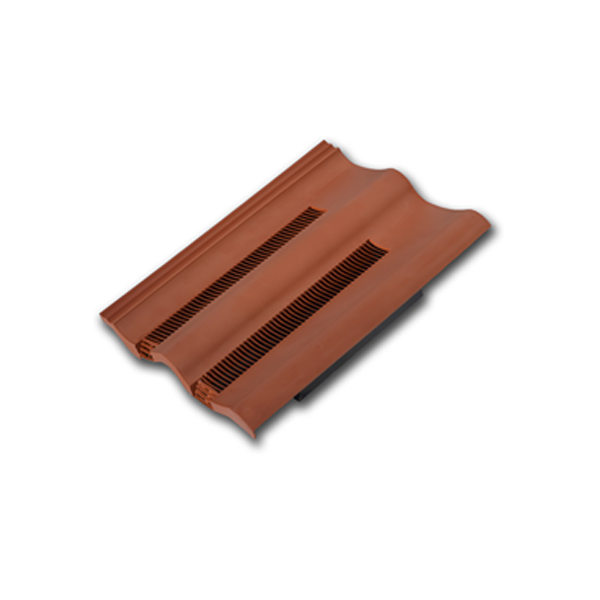

Double Pantile in-line tile vent TV15/2
15,000mm²
420mm
330mm
5’s

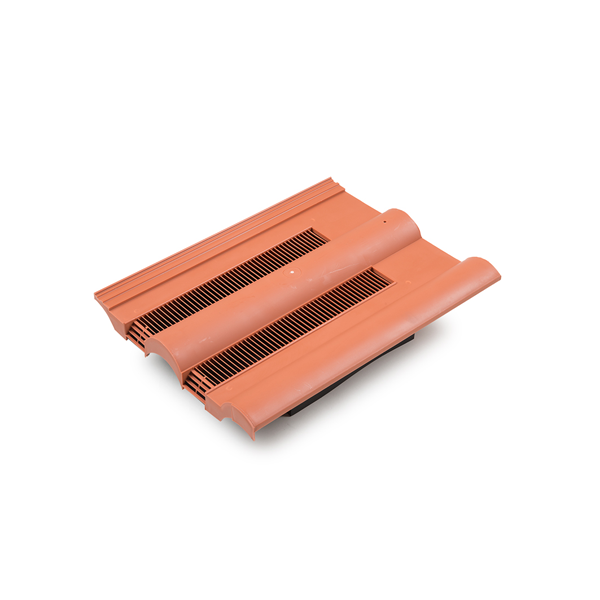

Double Roman in-line tile vent TV15/3
15,000mm²
420mm
330mm
5’s

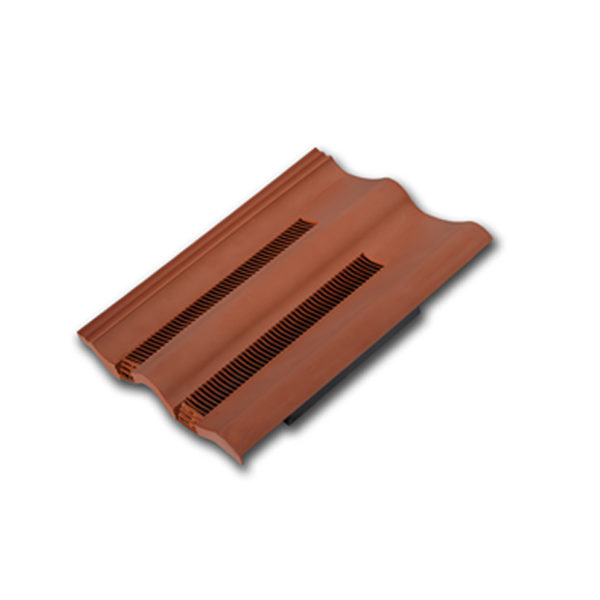

Castellated in-line tile vent TV15/4
15,000mm²
420mm
330mm
5’s

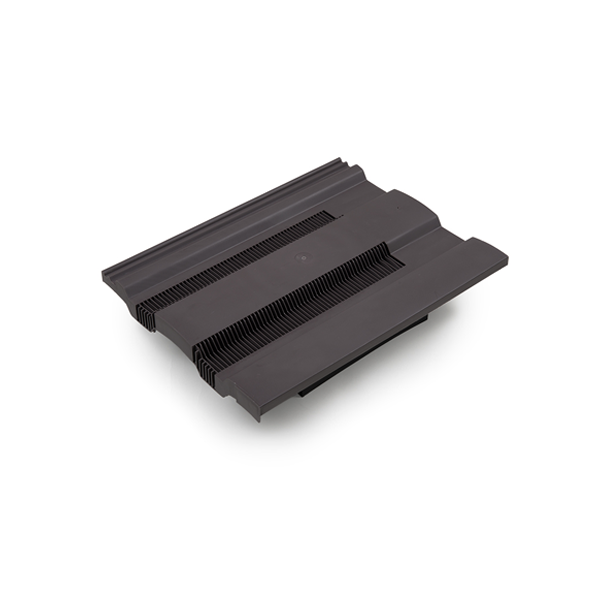

Renown in-line tile vent TV15/7
15,000mm²
420mm
330mm
5’s

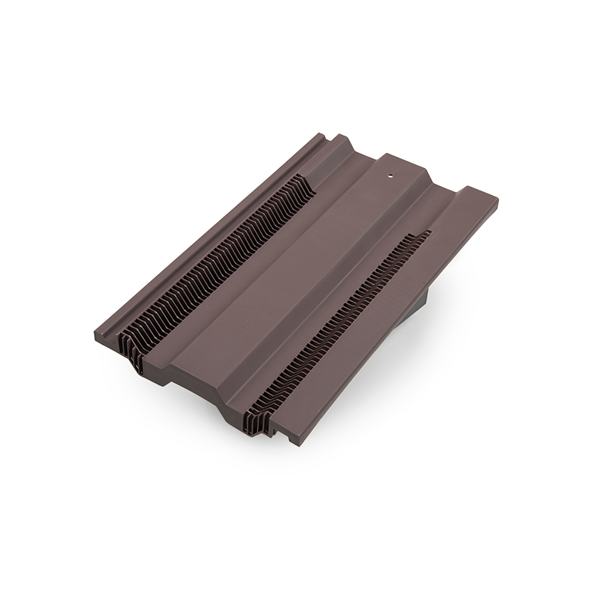

Mini Castellated 49 in-line tile TV10/6
10,000mm²
395mm
232mm
5’s

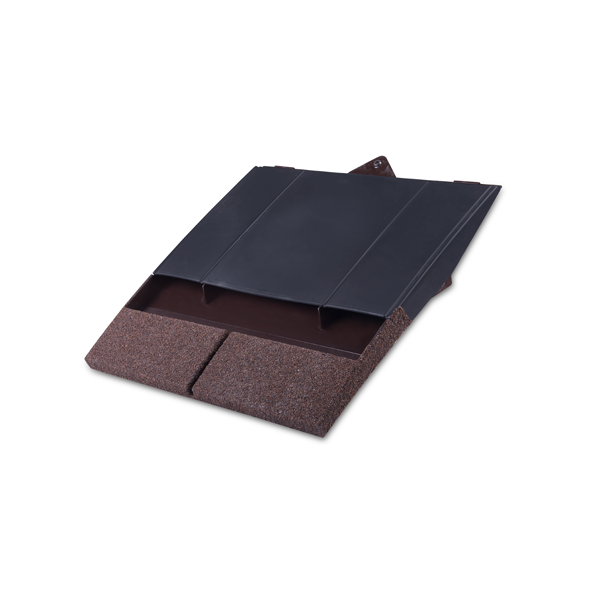

Plain in-line tile vent TV10/9
6,100mm²
310mm
330mm
5’s
Soil pipe adapter kit – Plain TV10/9 in-line
6,100mm²
440mm
110mm Dia
5’s
Soil pipe adapter kit – Large profile TV15 in-line
8,000mm²
440mm
110mm Dia
5’s
Soil pipe adapter kit – Small profile TV10 in-line
8,000mm²
440mm
110mm Dia
5’s

• For high or low level roof space ventilation

• Tile replacement ventilator

• Suitable for soil ventilation and mechanical extraction

• To reduce risk of condensation

• For new and/or refurbishment projects

• High airflow designs

• Built in spigot allows direct ventilation into the roof space

• Discreet flush fitting and low-profile

• Prevents ingress of water, birds/vermin and large insects

• Complies with Building Regulation approved documents F1 & C2

• Meets requirements of BS5250:2021 Management of moisture in buildings

• Provides compliance with BS5534

• Assists in meeting requirements of the Domestic ventilation compliance guide 2010

• Lightweight and resistant to corrosion and rotting

• Acid rain resistant and UV stabilised

• Manufactured in Polypropylene

• Range of colours available: Grey, Black, Antique Red, Brown, or Terracotta
