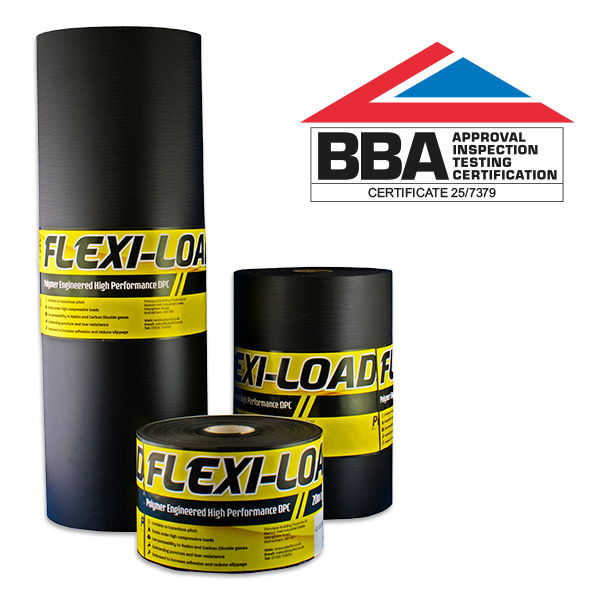

Flexi-Load High Performance DPC

Polymer engineered High Performance DPC with a unique embossed surface. Tough, flexible and suitable for cavity trays and as a Radon DPC barrier.

Category:

The Flexi-load range of polymeric DPCs are a well-established range of damp proof courses and accessories, designed to meet the increasing demands of the construction market. They are tough and flexible and perform well under high compressive loads.

  • Supplied on 20m rolls in width ranges from 100mm to 1000mm

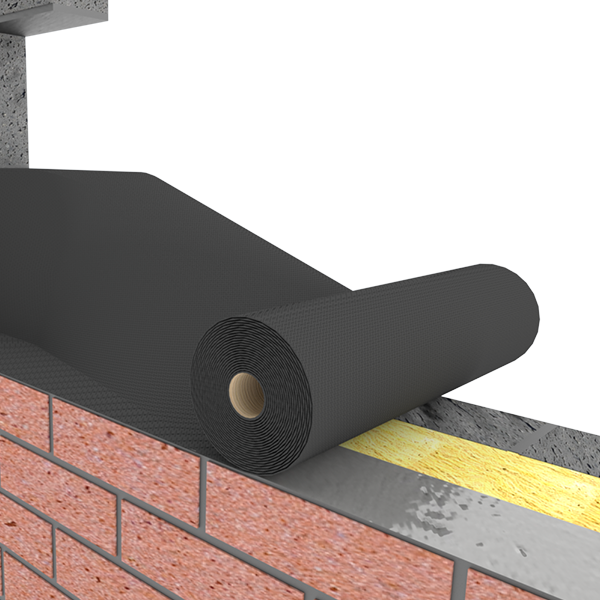

  • To be used as a flexible cavity tray system
  • Site formed to manage the downward passage of water.
  • To prevent the passage of moisture from the ground rising into the fabric of the building.
  • Can be used in heavy loading situations, such as in multi storey buildings
  • Suitable for DPC cavity tray applications at ground level
  • Radon DPC barrier
  • Contains no hazardous pitch or bitumen
  • Will not extrude under load
  • Outstanding puncture and tear resistance
  • Embossed to increase adhesion and reduce slippage
  • Flexible at low temperatures
  • Available in a range of standard widths
  • CE Marked to EN 14909
  • Radon resistant damp proof course
  • Preformed Units available

Colour – Black

Thickness – 0.8mm

Roll sizes – various widths x 20mtr

CE Marked to EN 14909

Radon Permeability (SP Method 3873)  4.8·10¯¹² m²/s

Description Roll width Roll length Thickness m2
Flexi-load high performance DPC
100mm
20m
0.8mm
2
Flexi-load high performance DPC
112mm
20m
0.8mm
2.24
Flexi-load high performance DPC
150mm
20m
0.8mm
3
Flexi-load high performance DPC
225mm
20m
0.8mm
4.5
Flexi-load high performance DPC
300mm
20m
0.8mm
6
Flexi-load high performance DPC
337.5mm
20m
0.8mm
6.75
Flexi-load high performance DPC
450mm
20m
0.8mm
9
Flexi-load high performance DPC
600mm
20m
0.8mm
12
Flexi-load high performance DPC
900mm
20m
0.8mm
18
Flexi-load high performance DPC
1000mm
20m
0.8mm
20

Downloads

Pre-formed Units Available

Pre-formed corner units – for use to return corners for full perimeter cavity tray.

Pre-formed Telescopic underfloor vent collars – To allow for sealing around ventilation ducts.

Pre-formed stop end units – for capping off the ends of a cavity tray run and at column projections
