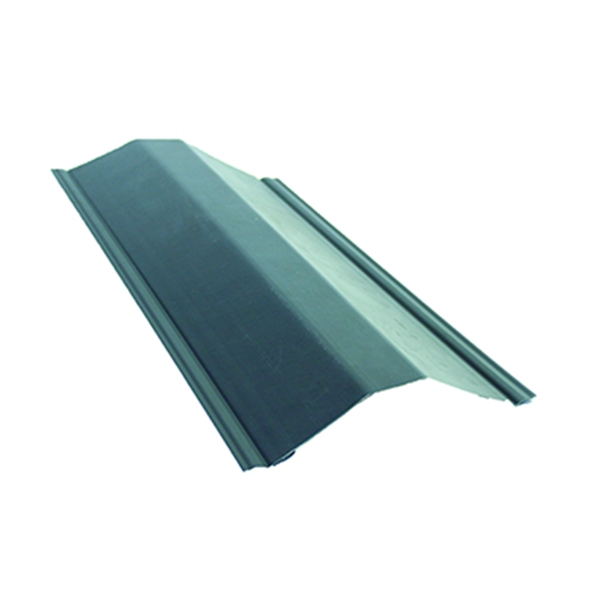

The dry fix hip support tray is fitted above the vent roll of a universal dry fix ridge kit when installed on a hipped ridge. The hip support tray provides a straight and level platform to support the tiles up the hip of the roof. The trays are 1200mm long but can easily be cut to length or shaped to the angles required at the eaves of the hip and/or ridge-hip junction.
• To form a continuous support to hip tiles up the hip of the roof
• Fitted above dry fix ridge kit vent roll
• Hip water drainage tray
• Contributes to meeting requirements of BS5534
• Lightweight and resistant to corrosion and rotting
• Combine with vent roll from dry fix ridge vent kit
• Manufactured in Black/grey PVC
Dry fix hip support kit contents:
| Description | Full Length | Working Length | Width | Height | Pack Qty |
|---|---|---|---|---|---|
|
Dry fix support tray 1.2m |
1200mm |
1100mm |
255mm |
30mm |
5 |
|
Short hip tile clips |
- |
- |
- |
- |
20 |
|
Long hip tile clips |
- |
- |
- |
- |
20 |
|
Short leg ratchet clips (optional use) |
- |
- |
- |
- |
26 |
